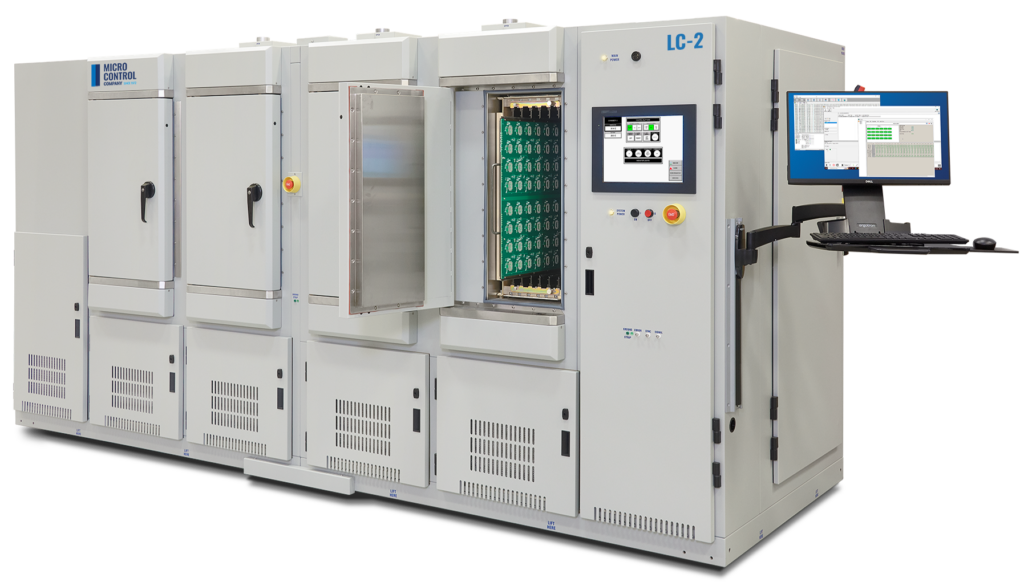

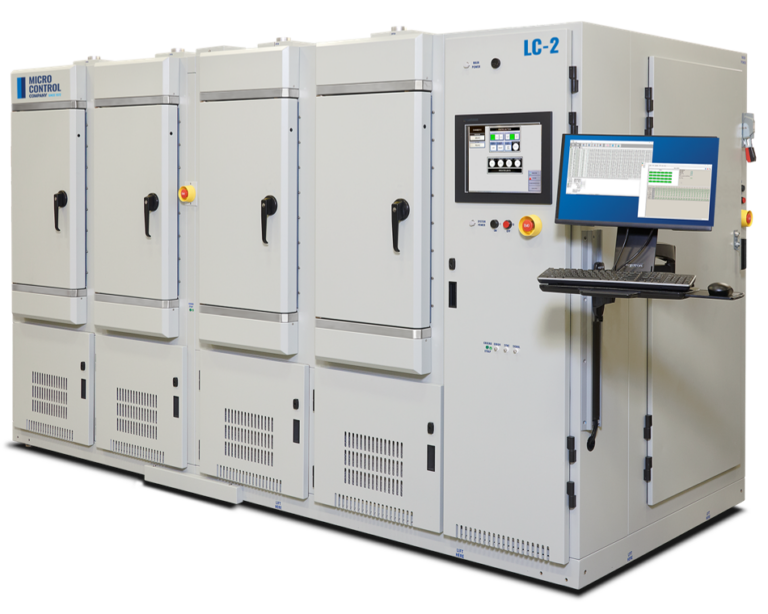

LC-2+

Production Burn-In and Individual Temperature Control

The LC-2+ is a sophisticated burn-in with test system which handles advanced requirements through its ability to perform dynamic burn-in with test. The LC-2+ is ideally suited for applications in engineering characterization, life testing, and production screening. The major function of the LC-2+ is to provide proper stressing temperature, voltage, and current condition to identify the functionality of the device during burn-in.

LC-2+

Sophisticated Low-cost Burn-in System with Individual Temp Control

Features:

  • Large system capacity – 64 burn-in boards
  • Individual temperature control up to 50 watts, compatible with many BIB sizes
  • 128 or 256 digital I/O channels per burn-in board
  • 5 individually programmable power supplies (up to 400 watts and 248 amps) per burn-in board
  • Up to 150 Volt power supply outputs
  • Up to 32 pattern and power zones
  • Total flexibility up to 8M vector memory depth with scan capability per BIB

Benefits:

  • Ensures proper thermal stress for up to 50W DUTs
  • Enables high-volume production burn-in at the same time
  • Allows use of existing burn-in boards
  • Burn-in multiple device types at the same time
  • Exercise and test more devices in parallel
  • Stress at optimum temperature
  • Programming flexibility
  • Test both logic and memory functions
  • Run test vectors without time consuming reloads
  • Flexible DUT power
