A powered mobile workstation for transporting BIB and regulator assemblies between your HPB-8 systems and EDS. A powered lift automatically aligns and levels to slot height and docks directly to the system, so high-value boards move safely with minimal manual handling.
| Transport | Moves BIBs, regulators, and complete BIB/regulator assemblies |
| Powered Lift | Automatic alignment and leveling to slot height |
| Docking | Direct docking to burn-in systems and EDS |
| Docked Integration | Powered integration and separation of BIBs and regulators while docked |
| Design | Open-sided for easy access to BIBs and sockets |
| Locking | Independent locking of BIBs and regulators for secure transport |
| Safety Features | Locking castors, sliding window interlock, and BIB detection sensors |

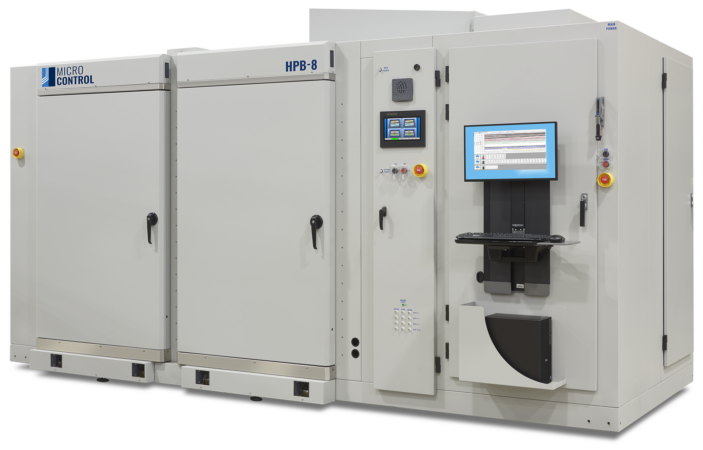

Micro Control's most powerful burn-in with test system, with individual temperature control per device and capacity for devices over 2,000 watts. Built as a standalone automation solution for AI, automotive, and advanced semiconductor production.
Designed by engineers and PCB designers experienced in multi-layer layouts. Each HPB-8 burn-in board is designed for the device under test and for the customer's specific requirements. Device size and complexity determine how many device fit per board.
A single-board (one-slot) system with the same test electronics and device cooling as a full HPB-8. Primarily used for test development and board troubleshooting.
Individual automation modules that run on their own or attach to a single system, a way to add automated handling without committing to a full line. A flexible entry point that can grow into the complete setup.
Burn-in with Individual temperature control (ITC) is the most important development in burn-in technology.
Burn-in is the process that applies elevated temperatures and high voltages to accelerate conditions that will stress semiconductors during what is known as their infant mortality period.
Get The Complete Turnkey Solution For The HPB-8
