LC-3

Burn-In Board Carts

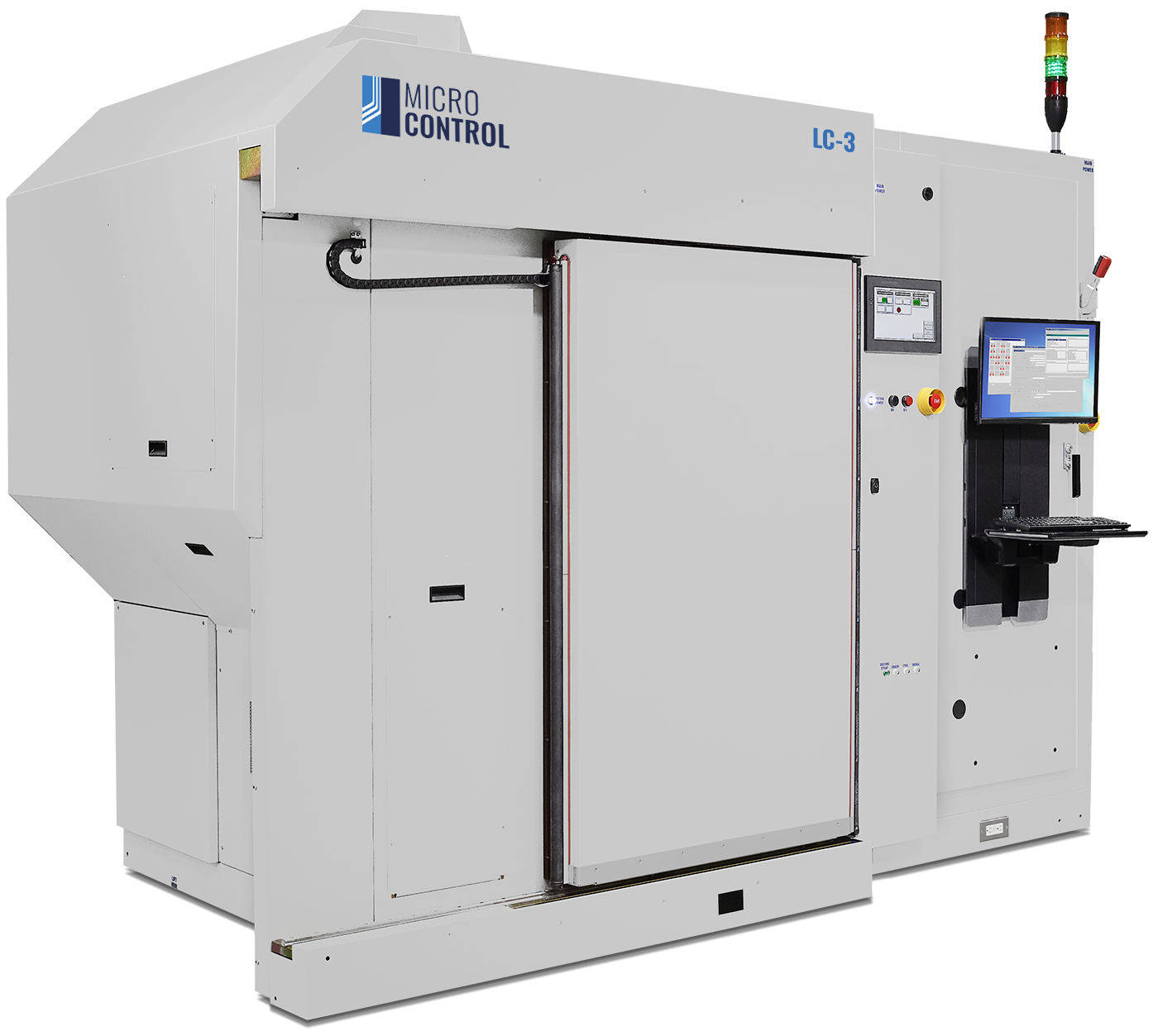

Micro Control LC-3 industrial machine with a large central door, control panel, and an attached monitor and keyboard station.

LC-3 BIB Cart for Burn-In with Test

The LC-3 BIB cart streamlines the process of loading and unloading burn-in boards into and from an LC-3 H1 system. This style of cart is designed to be rolled from location to location. When docking to a system, the cart feet must be guided into the docking bracket, and the cart pushed in so that the latch mounted on the cart engages with the latch mounted above the oven door. Once the cart is latched into the system, pneumatic cylinders engage and move the cart into position for loading and unloading burn-in boards from the LC-3.

All Accessories

Technical Specifications

MATERIAL HANDLING

Transport	Moves BIBs
Docking	Direct docking to LC-3 H1-style burn-in systems
Locking	Secures BIBs for transport
Safety Features	Locking castors

LC-3

The LC-3 system is a production-ready burn-in with test system for logic, mixed signal, analog, and memory devices. Combines dynamic burn-in with test, expanded power and temperature control, and cold burn-in capability in one platform.

View Details

A large green circuit board populated with a grid of square black integrated circuit sockets and a metal handle.

LC-3 Burn-In Boards

Designed by engineers and PCB designers experienced in multi-layer board layouts. Each LC-3 board is designed for the device under test and the customer's specific requirements. The device size and complexity determine how many devices will fit per board.

View Details

LC-3 EDS

A single-board (one-slot) system with the same test electronics and device cooling as a full LC-3. Primarily used for test development and board troubleshooting.

View Details

Industrial manufacturing machine with a control panel, interior shelving unit, and an external status light tower.

Integrated Automation

A connected complete setup of automated loading, mobile robotics, and burn-in systems working as one. Cross platform software synchronizes every handoff, scaling from a single cell to full production.

View Details
