Micro Control specializes in custom-designed burn-in boards engineered specifically for the HPB-5C platform. The use of lidded sockets with heat sinks provides up to 24 devices per burn-in board with individual temperature control.
| PCB Size | 22.5” D × 24.0” W (571.5 × 609.6 mm) |
| DUT Area / User Space | 16.9” × 23.4” (429.3 × 594.4 mm) |
| Number of Devices | Up to 24 with ITC |
| Sockets | Lidded socket w/ heat sink (required) |
| Cooling Method | Heat sink + air |

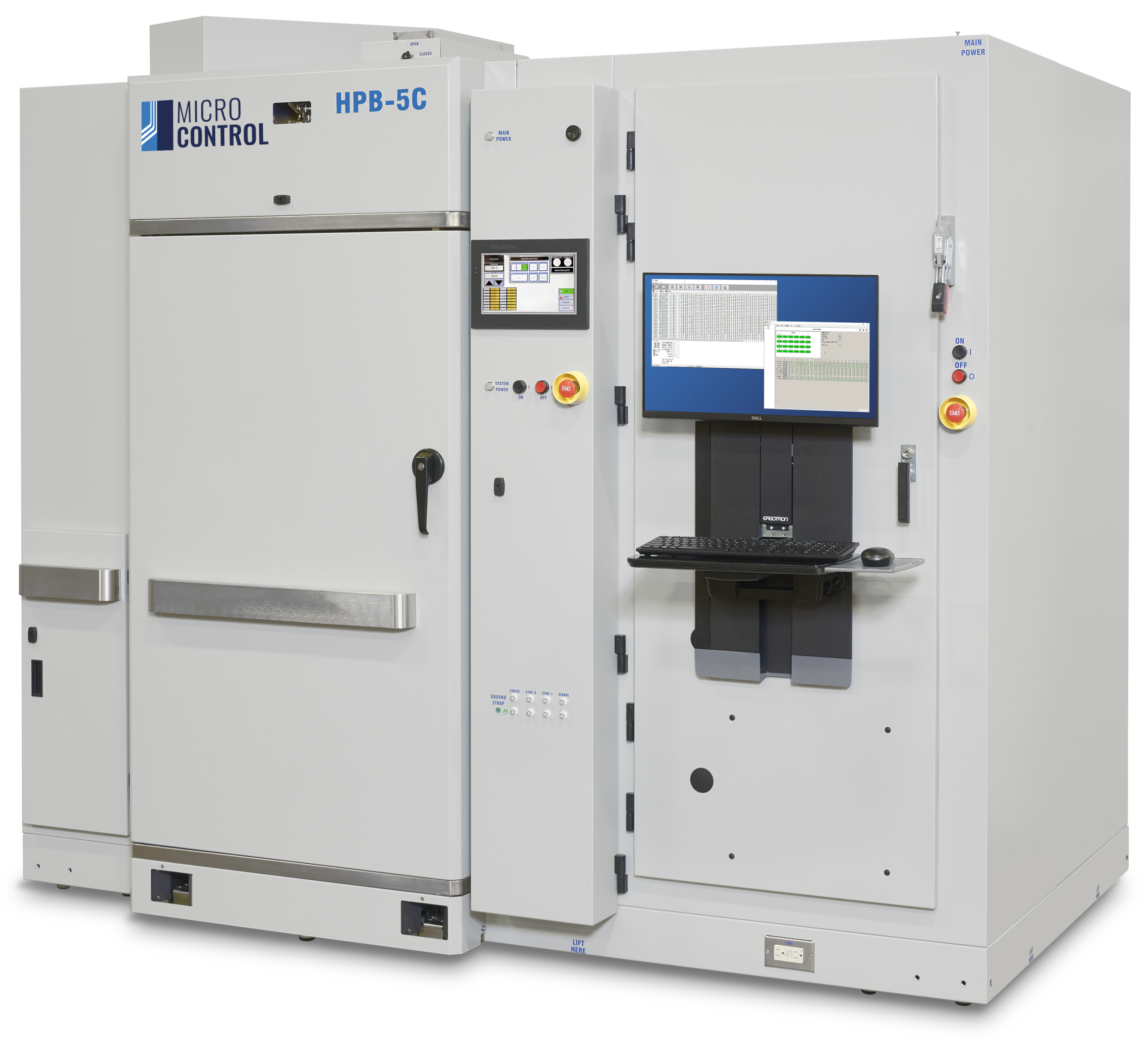

The HPB-5C is an industry standard, one of Micro Control's most proven, versatile burn-in with test system trusted by manufacturers worldwide. Air-cooled with individual temperature control per device, it keeps testing floors running dependably across legacy and current production.
A single-board (one-slot) system with the same test electronics and device cooling as a full HPB-5C. Primarily used for test development and board troubleshooting.
A mobile cart for transporting BIBs. Carts insure that high-value boards are secure in transit and reduces manual handling.
A connected complete setup of automated loading, mobile robotics, and burn-in systems working as one. Cross platform software synchronizes every handoff, scaling from a single cell to full production.
Burn-in with Individual temperature control (ITC) is the most important development in burn-in technology.
Burn-in is the process that applies elevated temperatures and high voltages to accelerate conditions that will stress semiconductors during what is known as their infant mortality period.
