High-Power Burn-In with Test System
The HPB-6 is an advanced, high-performance burn-in system capable of performing dynamic burn-in with test on extremely high-power (1000+ watt) devices. Temperature control on the HPB-6 is accomplished via device power feedback and has fuzzy logic control for stability. Water-cooled high-force sockets provide good thermal contact for efficient heat transfer.
| Target DUT Wattage | 1,000W |
| Available Power | 48 supplies, 4,560A, 7,440W |
| Max Power per BIB | 4,400W |
| High-Current Regulators | 24 per BIB — 250W, 175A, 0.3V–1.8V |
| Low-Current Regulators | 24 per BIB — 60W, 15A, 0.3V–4.0V |
| Vector Memory Depth | 64M standard, 128M optional |
| Scan Mode Rep-Rate | Up to 40MHz (up to 100MHz on 16 dedicated fast scan channels) |
| High-Frequency Clocks | 8 clocks, up to 350MHz, LVDS |
| BIB Slots | 16 |
| Pattern Zones | Up to 16 |
| I/O Channels | 128 formatted digital, plus 128 vector-driven-only |
| Test Resolution | 1.25 ns (8 on-the-fly timing sets) |
| Temp Channels per BIB | 12 individual |
| System DUT Capacity | 192 temperature-controlled DUTs |
| Temperature Limit | 150°C per DUT |
| Socket Cooling | Liquid-cooled with heater per DUT |
| System Cooling | Standalone chiller for DUT coolant |
Our automation solutions are designed and built along with a Taiwanese partner, or through another partner as needed, for HPB-6 integration. Automation increases throughput and cycle consistency while reducing manual handling and operator exposure, and providing continuous operation with repeatable precision.

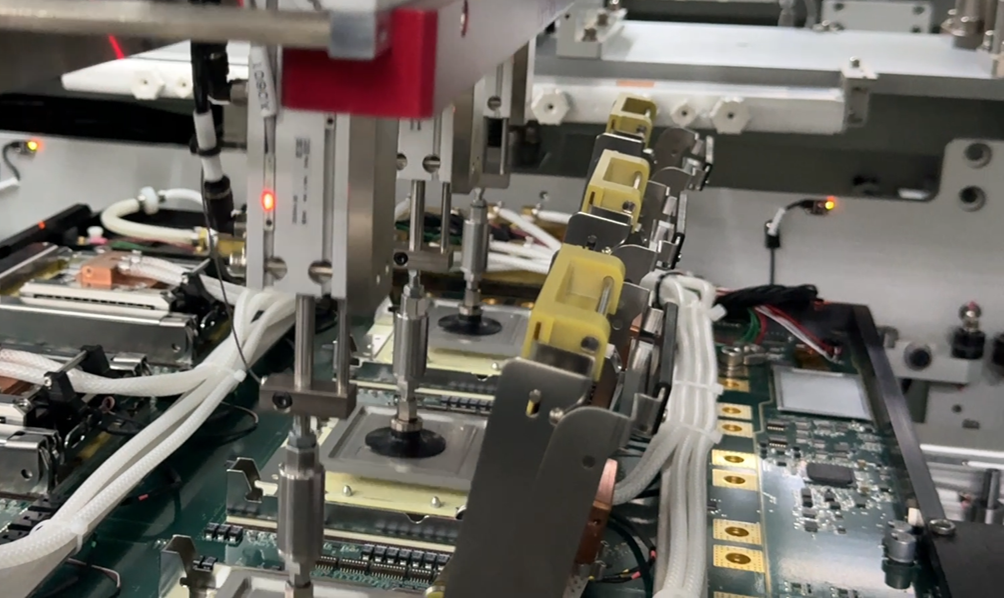

The HPB-6 can be paired with a complete automation solution to handle AI, automotive, and advanced semiconductor devices through a production burn-in environment incorporating an automated guided vehicle (AGV), autonomous mobile robot (AMR), automatic loader-unloader (ALU), and the HPB-6. This complete setup creates a modular network working together for a complete turnkey automation solution; cross-platform software synchronizes all motion and communication, and scalable design supports single systems or entire production lines.
Designed by engineers and PCB designers experienced in multi-layer board layouts. Each HPB-6 burn-in board is built for the device under test and for the customer's specific requirements. The device size and complexity determine how many devices fit per burn-in board.
A single-board (one-slot) system with the same test electronics and device cooling as a full HPB-6. Primarily used for test development and board troubleshooting.
A powered workstation for moving BIB and regulator assemblies between your HPB-6 systems and EDS. The powered lift aligns to slot height and docks directly to the system, reducing manual handling.
A connected complete setup of automated loading, mobile robotics, and burn-in systems working as one. Cross platform software synchronizes every handoff, scaling from a single cell to full production.
Compare up to three Micro Control solutions to quickly narrow your options and identify which burn-in system best aligns with your device requirements, testing environment, and performance goals.
Option 1 of 3
Option 2 of 3
Burn-in with Individual temperature control (ITC) is the most important development in burn-in technology.
Burn-in is the process that applies elevated temperatures and high voltages to accelerate conditions that will stress semiconductors during what is known as their infant mortality period.
