LC-3

Burn-In Boards

Micro Control LC-3 industrial machine with a large central door, control panel, and an attached monitor and keyboard station.

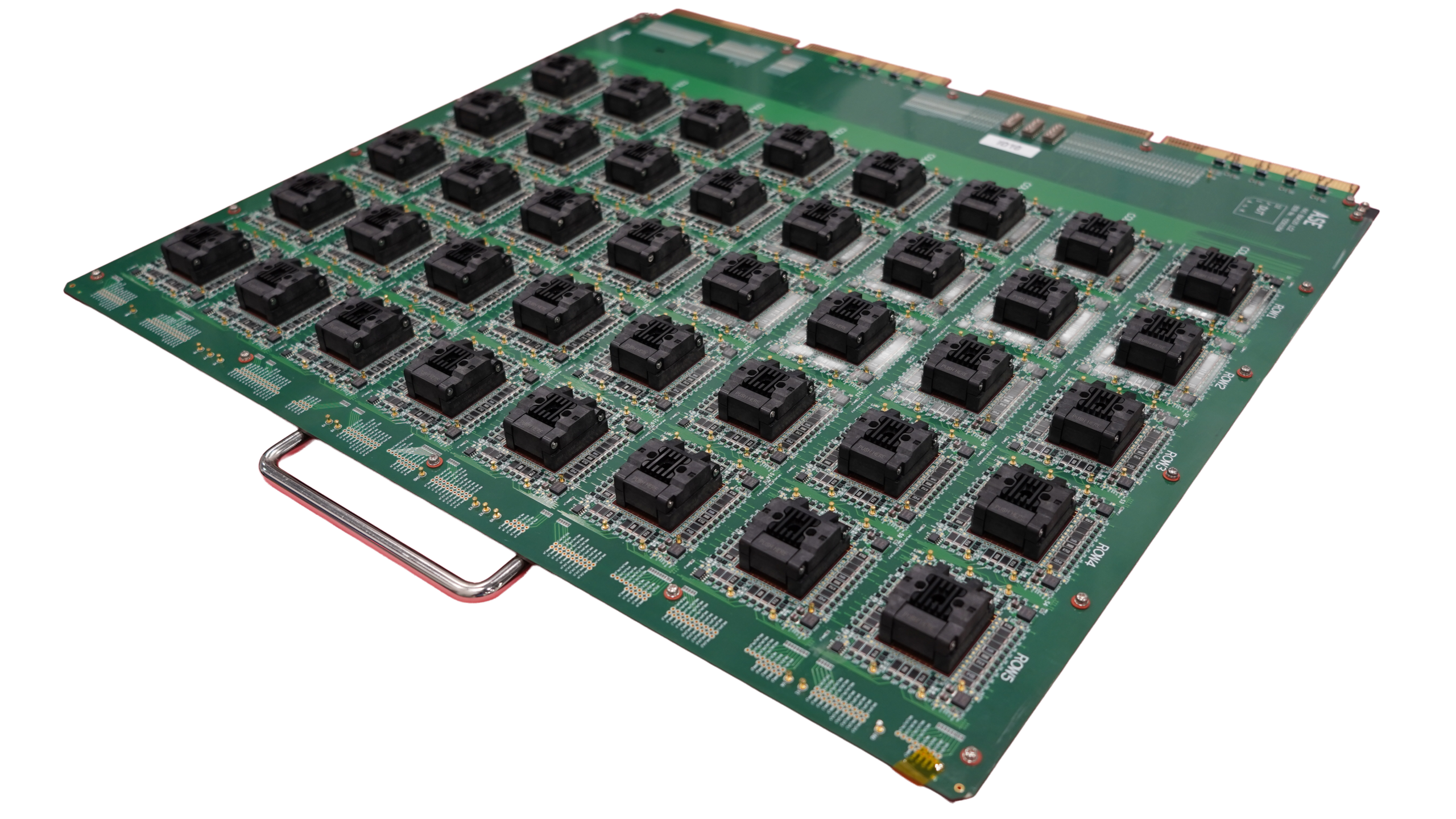

LC-3 Burn-In Boards for High-Power Burn-In with Test

Custom-designed burn-in boards built for signal integrity, thermal stability, and repeatable results on the LC-3. Engineered around your device by Micro Control’s experienced PCB design team, supporting up to 84 devices depending on size and complexity.

Our custom-designed burn-in boards are built specifically for the LC-3 platform for optimal burn-in with test. Engineered around your device by Micro Control’s experienced PCB design team, supporting up to 84 devices depending on size and complexity.

All Burn-In Boards

Technical Specifications

BIB SPECIFICATIONS

PCB Size	24.0” W × 22.5” D (609.6 × 571.5 mm)
DUT Area / User Space	16.7” x 22.8” (424.1 mm x 579.1 mm)
Number of Devices	Up to 84 depending on size & complexity
Sockets	High-temp, user specified
Cooling Method	User specified

LC-3

The LC-3 system is a production-ready burn-in with test system for logic, mixed signal, analog, and memory devices. Combines dynamic burn-in with test, expanded power and temperature control, and cold burn-in capability in one platform.

View Details

LC-3 EDS

A single-board (one-slot) system with the same test electronics and device cooling as a full LC-3. Primarily used for test development and board troubleshooting.

View Details

Tall mobile storage rack with multiple horizontal shelving tiers on casters.

LC-3 Burn-In Board Carts

The LC-3 BIB cart streamlines the process of loading and unloading burn-in boards into and from an LC-3 H1 system. This style of cart is designed to be rolled from location to location. When docking to a system, the cart feet must be guided into the docking bracket and the cart pushed in so that the latch mounted on the cart engages with the latch mounted above the oven door. Once the cart is latched into the system, pneumatic cylinders engage and move the cart into positing for loading and unloading burn-in boards from the LC-3.

View Details

Industrial manufacturing machine with a control panel, interior shelving unit, and an external status light tower.

Integrated Automation

A connected complete setup of automated loading, mobile robotics, and burn-in systems working as one. Cross platform software synchronizes every handoff, scaling from a single cell to full production.

View Details
