LC-FLEX

Burn-In Boards

Request a quote

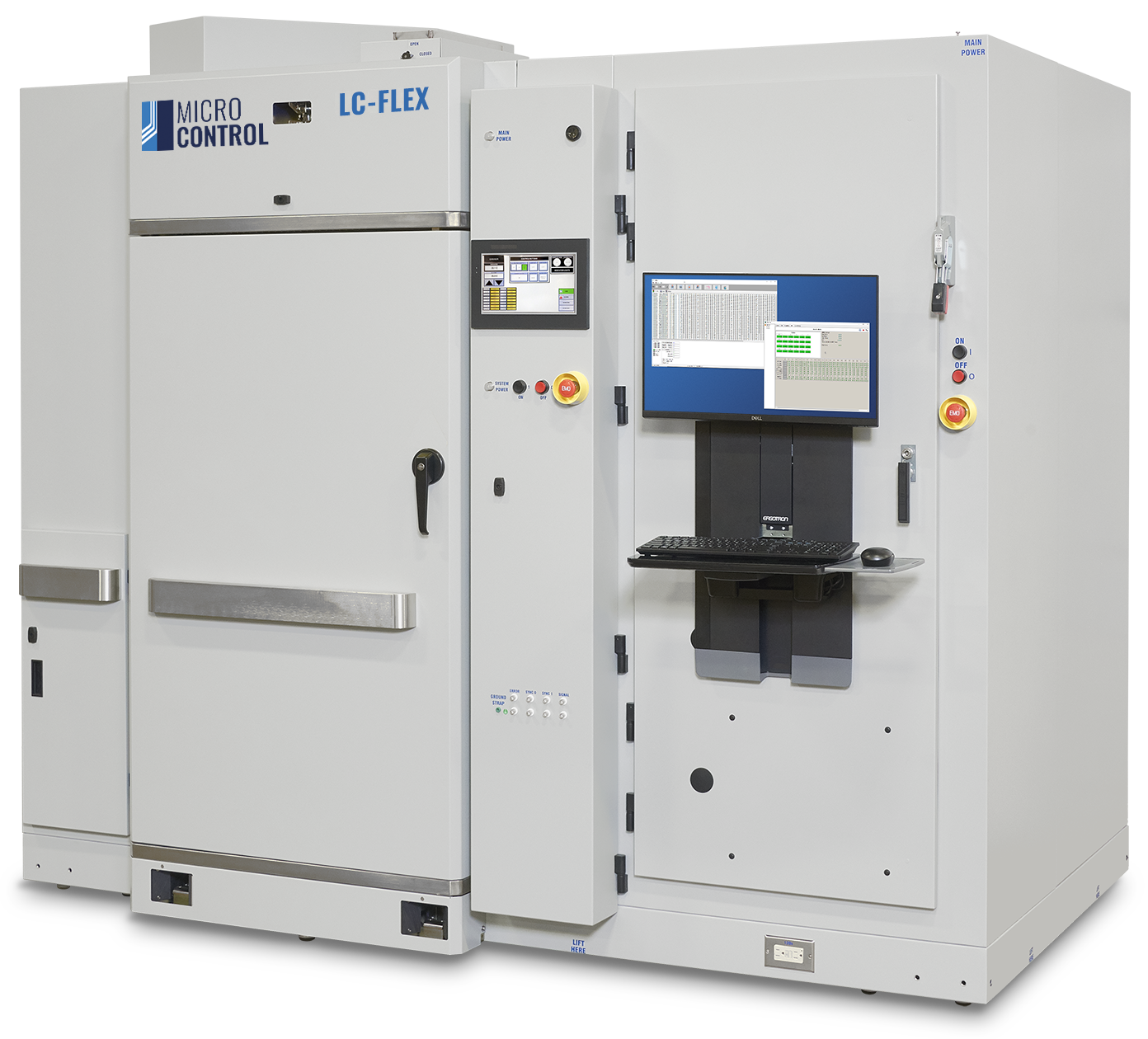

Micro Control LC-FLEX industrial test system with a large chamber, touchscreen interface, and attached computer monitor with keyboard.

LC-FLEX Burn-In Boards for a Range of Burn-In with Test

Custom-designed burn-in boards for the LC-FLEX are engineered around your device by Micro Control’s experienced PCB design team. Each BIB is designed and built for signal integrity, thermal stability, and repeatable results. The LC-FLEX supports the flexibility for a wide range of device sizes and configurations, and BIBs are available in single-wide formats that support up to 24 devices or double-wide formats that support up to 48 devices with 256 I/O.

All Burn-In Boards

Technical Specifications

BIB SPECIFICATIONS SINGLE WIDE
PCB Size 12.3” x 24” (312.4 mm x 609.6 mm)
DUT Area / User Space 6.7” x 22.8” (170.1 mm x 579.1 mm)
Number of Devices Up to 84 depending on size & complexity
Sockets High-temp, user specified
Cooling Method User specified
BIB SPECIFICATIONS DOUBLE WIDE
PCB Size 22.2” x 24” (563.9 mm x 609.6 mm)
DUT Area / User Space 16.6” x 22.8” (421.6 mm x 579.1 mm)
Number of Devices Up to 84 depending on size & complexity
Sockets High-temp, user specified
Cooling Method User specified
Micro Control LC-FLEX industrial test system with an integrated door, control panel, monitor, and keyboard.

LC-FLEX

A flexible, LC-2-compatible burn-in with test system with individual temperature control for devices up to 50 watts. A custom adapter board runs BIBs from other systems and manufacturers, bridging past, current, and future requirements.

View Details
Micro Control LC-FLEX EDS industrial controller unit with four cooling fans on top and ventilation grilles on the side.

LC-FLEX EDS

A single-board (one-slot) system with the same test electronics and device cooling as a full LC-FLEX. Primarily used for test development and board troubleshooting.

View Details
Tall mobile storage rack with multiple horizontal shelving tiers on casters.

LC-Flex Burn-In Board Carts

A manually operated mobile cart for transporting BIBs between your LC-FLEX systems and EDS.

View Details
Industrial manufacturing machine with a control panel, interior shelving unit, and an external status light tower.

Integrated Automation

A connected complete setup of automated loading, mobile robotics, and burn-in systems working as one. Cross platform software synchronizes every handoff, scaling from a single cell to full production.

View Details
