Burn In Board Accessories | Carts + Station

Not only does Micro Control Company offer a robust slate of burn-in systems and boards, but also a complete assortment of cross-platform supporting hardware and integration components, from transport and handling to full automation, that extend the performance and scalability of your burn-in infrastructure. Our team helps you find the accessories that fit your systems and your production goals.

Micro Control HPB-8 EDS industrial testing station with dual computer monitors, a keyboard, and a top-mounted status indicator light.

Engineering Development Station (EDS)

Engineering Development Stations (EDS) are single-board (one-slot) systems that provide the same test electronics and device cooling for single burn-in boards as are available in full burn-in systems of the same configuration. The EDS is primarily used for test development and board troubleshooting.

Research and development on devices
Single-board testing
Open design for easy access to test points
Scoping signals on burn-in boards
Designing and debugging test programs
Troubleshooting burn-in boards
Running diagnostic tests
Use with an accompanying burn-in system with the same design configuration

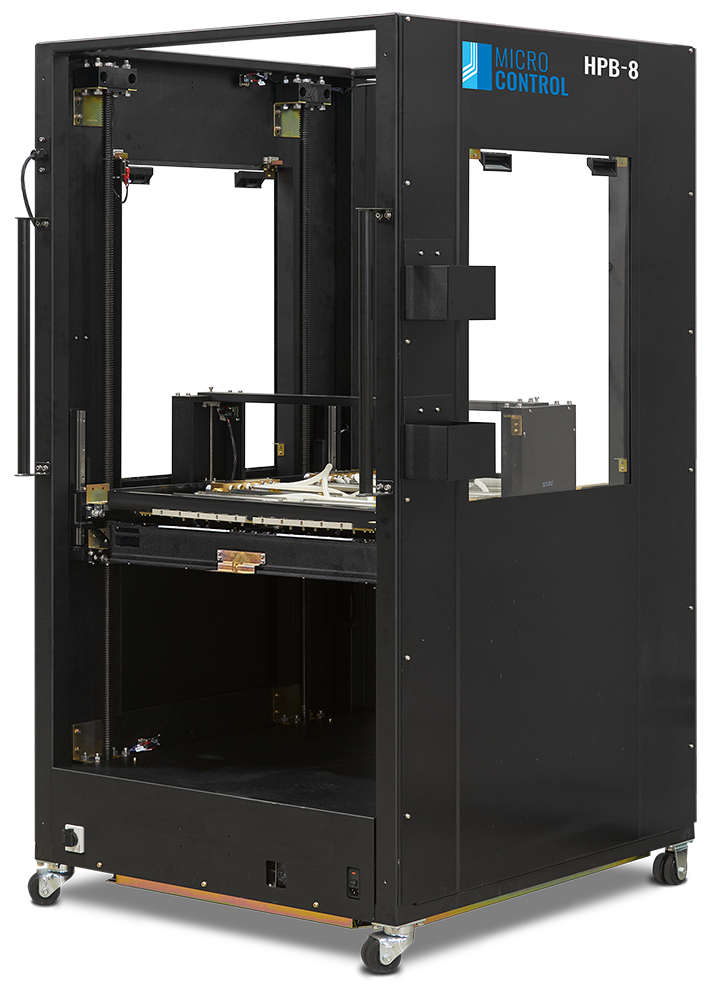

Micro Control HPB-8 industrial testing station in a black metal enclosure on wheels.

Burn-In Carts & Mobile Workstations

Micro Control offers mobile solutions for transporting burn-in boards (BIBs) and regulator assemblies between burn-in systems and Engineering Development Stations (EDS). Burn-In Carts provide secure, manual transport for the LC-2 V Series, LC-3, LC-FLEX, and HPB-5C, while the powered Mobile Workstation supports the HPB-6 and HPB-8.

The Mobile Workstation uses a powered lift that automatically aligns and levels to slot height, with rollers that let BIB and regulator assemblies slide into place with minimal effort. It docks directly to the burn-in system or EDS, and can integrate or separate BIBs and regulators while docked. BIBs and regulators lock independently for secure transport.

Transport of BIBs, regulators, and complete BIB/regulator assemblies
Powered lift with automatic alignment and leveling to slot height (Mobile Workstation)
Direct docking to burn-in systems and EDS
Powered integration and separation of BIBs and regulators while docked (Mobile Workstation)
Open-sided design for easy access to BIBs and sockets
Independent locking of BIBs and regulators for secure transport
Safety features including locking castors, sliding window interlock, and BIB detection sensors

Industrial manufacturing machine with a control panel, interior shelving unit, and an external status light tower.

Automation Solutions

Micro Control’s automation complete setup connects burn-in systems with automated loading and mobile robotics, moving devices through the burn-in process with minimal manual handling. It is a modular network (Automatic Loader-Unloader (ALU), Automated Guided Vehicle (AGV), Autonomous Mobile Robot (AMR), and burn-in systems) coordinated by cross-platform software that synchronizes all motion and communication. The scalable design supports a single system or an entire production line.

The complete setup integrates with some existing systems, allowing current customers to add automation without replacing burn-in hardware. Retrofits support direct ALU connection and AGV/AMR compatibility, enhancing reliability, consistency, and throughput while maintaining Micro Control’s precise electrical and thermal control.

Automatic Loader-Unloader (ALU) for hands-free board handling
Automated Guided Vehicle (AGV) and Autonomous Mobile Robot (AMR) with cassettes
Cross-platform software synchronizing all motion and communication
Integration with existing systems without replacing burn-in hardware
Reduced manual handling of high-value devices

Turnkey Solutions

Micro Control Company burn-in accessories are available as part of a complete turnkey solution. Available options for including with a burn-in with test system are engineering development stations, carts, automation, burn-in boards, and even purchasing sockets, which can save time and streamline the purchasing process.

An industrial assembly machine with vacuum suction heads lowering onto a large green circuit board.

Developing Automation Offerings

Automation is already available for our HPB-8 and HPB-6 systems, and we are actively working to bring those capabilities to more of our burn-in systems over time. As capabilities and demands expand, the goal stays the same: move high-value devices through burn-in with less manual handling and more repeatable results.

Available Today: Fully integrated automation for the HPB-8 and HPB-6, from automated loading to mobile robotics
Expanding Over Time: Engineering work underway to extend automation to additional burn-in systems
Built to Scale: A modular path that grows from a single cell to a full production line as your needs change

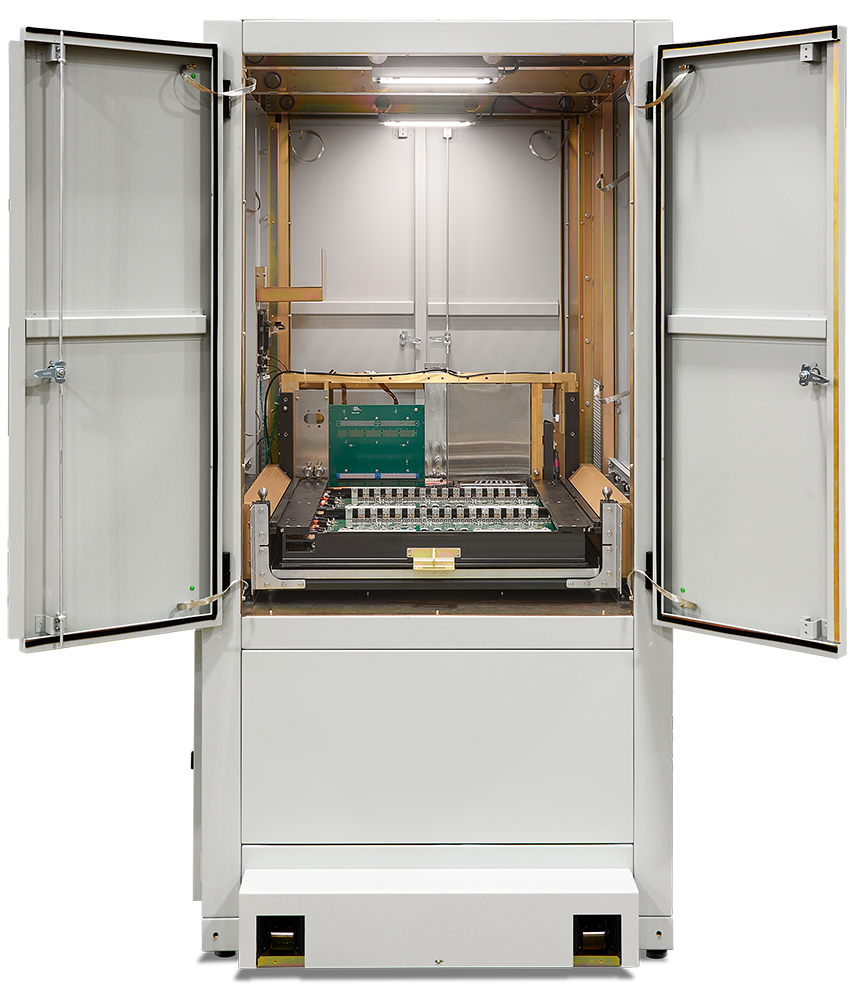

An industrial cabinet with open doors revealing internal electronic components and a circuit board.

Engineering Development Station (EDS) Benefits

An EDS is a single-board (one-slot) system that brings the same test electronics and device cooling as a full burn-in system to the bench. It is purpose-built for the work that happens before production: developing test programs, validating boards, and tracking down issues one board at a time.

Single-Board Focus: Develop, debug, and troubleshoot one burn-in board without tying up a full system
Open Access: An open design that makes test points easy to reach for scoping signals and running diagnostics
Production-Matched: Same configuration as its accompanying burn-in system, so what you prove out transfers directly to the floor

Why Choose MCC

Accessories Built for Your System

From engineering development stations to carts to automation, our accessories are designed to support your burn-in system’s configuration.

A Complete Burn-In Infrastructure

The right supporting hardware extends the performance and scalability of your floor, from single-board development and troubleshooting to full production automation.

50+ Years of Burn-In Expertise

Micro Control has been designing and building semiconductor testing solutions since 1972.

One Team, From Design to Deployment

Engineering, applications, manufacturing, and service work as a single team, so your system is designed, built, configured, and supported by people who know it end-to-end.
