LC-2

Burn-In Boards

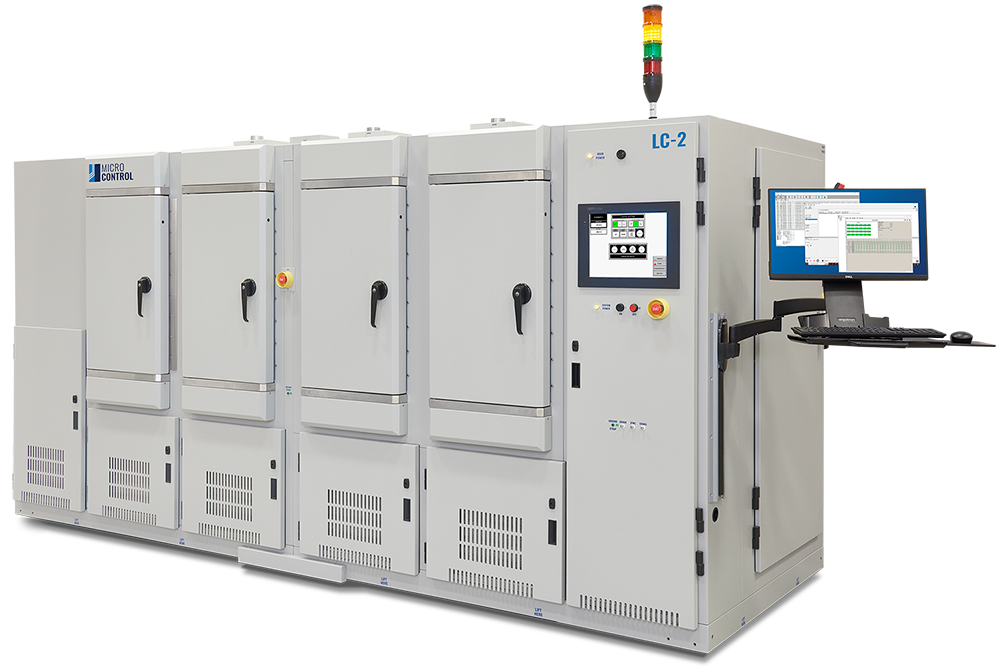

Micro Control LC-2 industrial test system with four storage chambers, a status indicator light stack, and an attached computer workstation.

LC-2 Burn-In Boards for High-Power Burn-In with Test

Custom-designed burn-in boards for the LC-2 are engineered around your device by Micro Control’s experienced PCB design team. Each BIB is designed and built for signal integrity, thermal stability, and repeatable results. The LC-2 supports the flexibility for a wide range of device sizes and configurations, and BIBs are available in single-wide formats that support up to 24 devices or double-wide formats that support up to 48 devices with 256 I/O.

All Burn-In Boards

Technical Specifications

BIB SPECIFICATIONS

PCB Size	SW: 12.3” x 24” (312.4 mm x 609.6 mm); DW: 22.2” x 24” (563.9 mm x 609.6 mm)
DUT Area / User Space	SW: 6.7” x 22.8” (170.1 mm x 579.1 mm); DW: 16.6” x 22.8” (421.6 mm x 579.1 mm)
Number of Devices	Up to 48 depending on size & complexity
Sockets	High-temp, user specified
Cooling Method	User specified

Micro Control LC-2 industrial testing system with four large climate chambers, a control screen, and an attached computer workstation.

LC-2 V Series

A burn-in with test system designed to maximize your existing board infrastructure. An adapter-based approach lowers cost-of-test, shortens design cycles, and runs legacy and next-generation hardware together.

View Details

Micro Control Company electronic testing unit with a prominent hazardous voltage warning label on its top panel.

LC-2 PSS

A single-board (one-slot) system with the same test electronics and device cooling as a full LC-2. Primarily used for test development and board troubleshooting.

View Details

Tall mobile storage rack with multiple horizontal shelving tiers on casters.

LC-2 Board Carts

A manually operated mobile cart for burn-in boards.

View Details

Industrial manufacturing machine with a control panel, interior shelving unit, and an external status light tower.

Integrated Automation

A connected complete setup of automated loading, mobile robotics, and burn-in systems working as one. Cross platform software synchronizes every handoff, scaling from a single cell to full production.

View Details

Featured Resources

Why Individual Temperature Control Burn-In

Burn-in with Individual temperature control (ITC) is the most important development in burn-in technology.

What is Burn-In?

Burn-in is the process that applies elevated temperatures and high voltages to accelerate conditions that will stress semiconductors during what is known as their infant mortality period.
