LC-FLEX

High-Power Burn-In with Test System

50 W
Wattage
2025
System Released
1536
DUTs Per System
Request a quote
A large green circuit board populated with a grid of square black integrated circuit sockets and a metal handle.

Designed with Flexibility for Current and Future Requirements While Being Compatible with Past Generations

The LC-FLEX is a sophisticated burn-in with test system that is LC-2 compatible and features individual temperature control (ITC) for each device under test. Individual temperature control ensures that devices up to 50 watts are kept at an optimum temperature for stressing and testing during the burn-in cycle.

A unique feature of the LC-FLEX is its adaptability to other manufacturers’ burn-in boards or LC-2-style BIBs sized up to 24 inches x 24 inches (0.6 m x 0.6 m). This is accomplished through a custom adapter board that connects the burn-in board to the system electronics.

All Systems

Technical Specifications

POWER SPECIFICATIONS
Target DUT Wattage 20W (50W for fewer devices)
Available Power 5 supplies, 248A, 1,000W
Max Power per BIB 500W (256 I/O option doubles the number of supplies per BIB)
High-Current Regulators 4 per BIB — 240W, 60A, 0.5V–9.5V (256 I/O option doubles supplies per BIB)
Low-Current Regulators 1 per BIB — 40W, 8A, 0.4V–5.0V (256 I/O option doubles supplies per BIB)
MEMORY & PATTERN CAPACITY
Vector Memory Depth 4M standard, 8M optional
Scan Mode Rep-Rate 10MHz
High-Frequency Clocks 1 clock, up to 210MHz, LVDS
SYSTEM CAPACITY & I/O
BIB Compatibility LC-2-style BIBs
BIB Slots 64 (32 if 256 I/O option)
I/O Channels 128 formatted digital per BIB (256 formatted digital depending on BIB size and card cage option)
Test Resolution 10 ns (8 on-the-fly timing sets)
THERMAL MANAGEMENT
Temp Channels per BIB 24 individual
System DUT Capacity 1,536 temperature-controlled DUTs
Temperature Limit 150°C per DUT
Socket Cooling Air-cooled chamber, heater per DUT

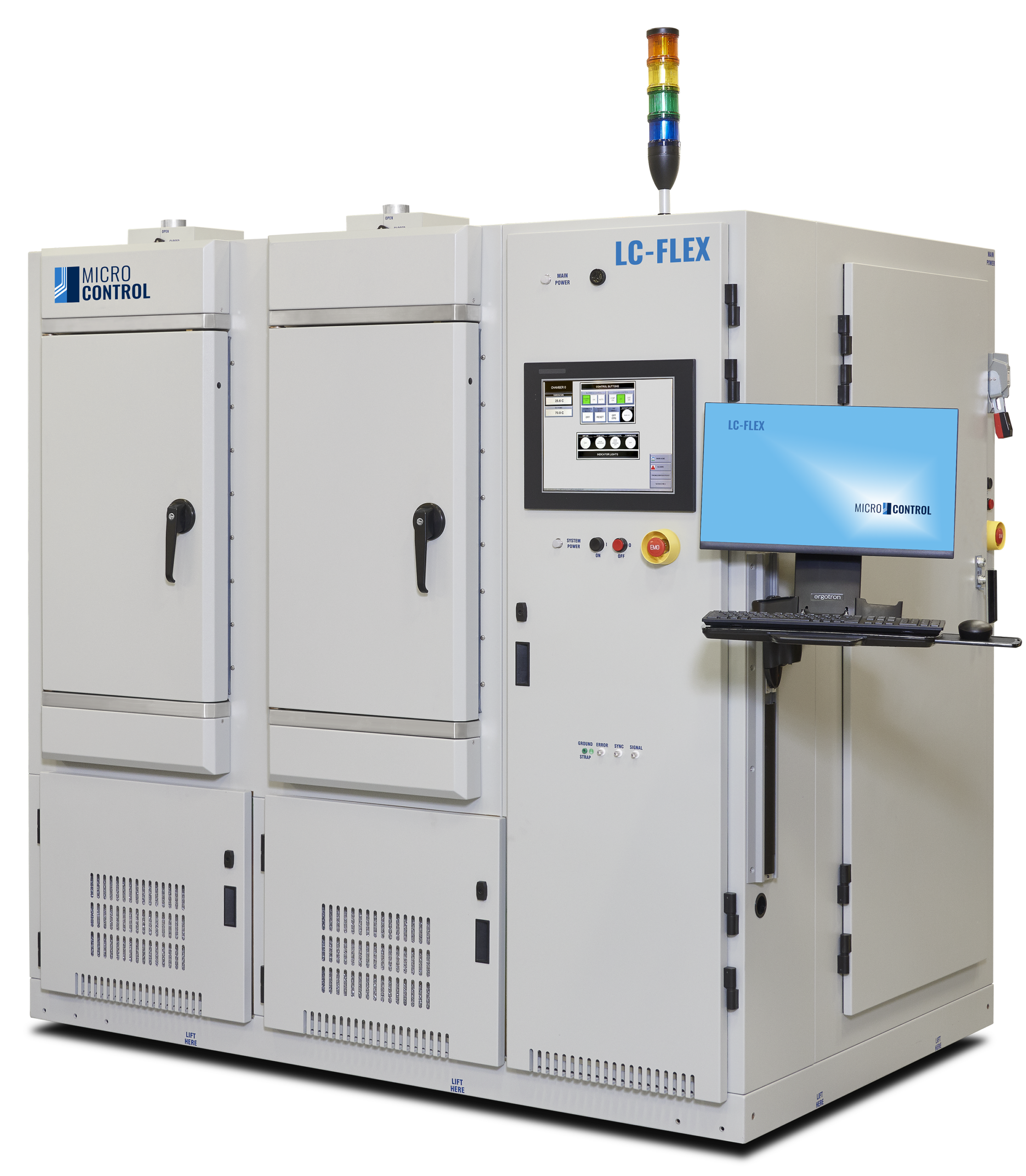

Micro Control LC-FLEX industrial test system featuring two large equipment chambers, a central control panel with a touchscreen, a computer monitor, and a keyboard tray.

The LC-FLEX Was Designed to Be Compatible With Existing Burn-in Hardware

The LC-FLEX is compatible with the LC-2 burn-in boards that you already own. With the use of custom adapter boards, it runs existing LC-2 BIBs directly and supports other system burn-in boards and other manufacturers’ burn-in board types as well. The LC-FLEX protects your investment in existing hardware while gaining the dynamic burn-in with test capability expected from a Micro Control Company system.

The LC-FLEX is compatibility includes:

  • Existing LC-2 BIBs and regulators
  • Other system BIB types through adapter boards
  • Other manufacturers’ burn-in board designs through adapter boards
  • Custom regulator designs

The LC-FLEX results in a flexible path to modern burn-in with test that allows you to continue to use the boards and regulators already on your floor, reducing cost-of-test and shortening the move to your next generation of devices.

A large green circuit board populated with a grid of square black integrated circuit sockets and a metal handle.

LC-Flex Burn-In Boards

Designed by engineers and PCB designers experienced in multi-layer board layouts. Each LC-FLEX board is designed for the device under test and the customer's specific requirements. The device size and complexity determine how many fit per board.

View Details
Micro Control LC-FLEX EDS industrial controller unit with four cooling fans on top and ventilation grilles on the side.

LC-FLEX EDS

A single-board (one-slot) system with the same test electronics and device cooling as a full LC-FLEX. Primarily used for test development and board troubleshooting.

View Details
Tall mobile storage rack with multiple horizontal shelving tiers on casters.

LC-Flex Burn-In Board Carts

A manually operated mobile cart for transporting BIBs between your LC-FLEX systems and EDS.

View Details
Micro Control HPB-8 industrial testing system with two open testing racks, a control panel, and a mounted computer monitor and keyboard.

Standalone Automation

Individual automation modules that run on their own or attach to a single system, a way to add automated handling without committing to a full line. A flexible entry point that can grow into the complete setup.

View Details

System Comparison

Compare up to three Micro Control solutions to quickly narrow your options and identify which burn-in system best aligns with your device requirements, testing environment, and performance goals.

Option 1 of 3

Option 2 of 3

Select a System
POWER SCALE
Power Scale
Max
Max
Max
PERFORMANCE SPECS
Target DUT Wattage
BIB slots
Individual Temperature Control Channels per BIB
System Capacity of Temperature Controlled DUTs
DUT Temperature Control Mechanism
APPLICATIONS
AI
ASIC
Automotive
Communications
Defense
Reliability
Smartphones

Why Choose the LC-FLEX

Focus square icon.

Backward Compatible by Design

LC-2 compatible and adaptable to other manufacturers’ BIBs through a custom adapter board.

Focus icon consisting of four corner brackets.

High Device Density

System capacity of 1,536 temperature-controlled DUTs across 64 BIB slots.

Icon of four outward-pointing corner brackets.

Individual Temperature Control

Keeps devices up to 50 watts at an optimum temperature throughout the burn-in cycle.

Four corner brackets forming a square outline.

Built for What's Next

A 256 I/O option scales capability for evolving device requirements, bridging past and future generations.
